Gear Tool sharpener (GTS-1)

Hauser Gear Tool Sharpener (GTS-1)

The Hauser/Index Gear Tool Sharpener is designed to sharpen a majority of gear cutting tools including shaper, skiving, hobs etc. These multi axes machines are built with best quality mechanical components and advanced Fanuc CNC controllers. These machines are designed for versatility, easy setup and operation, durability and practicality.

Contact Us

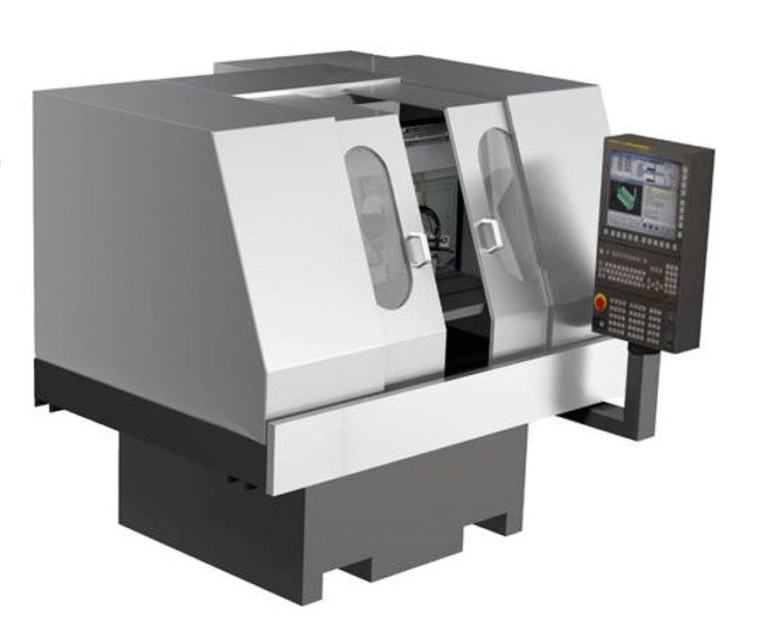

gts1main

Applications

Gear Shaper Cutter
Hobs
Skiving Cutters
Special Applications

Key Features

  • Controller: Fanuc CNC controller, servo motors and amplifiers
  • Spindle: 3 HP Variable Speed, 2400-7200 RPM Motor
  • X Axis Size: 30 inches
  • Y Axis Size: 10 inches
  • Z Axis Size: 12 inches
  • Rotary axis capable to rotate at 300 RPM
  • Resolution: .0001 inches

Options

  • Linear scales for resolution upto .00002″
  • Rotary scale for resolution upto 0.01 degree
  • Touch probe to automatically set radial position of the tool
  • Coolant system
  • Rotary diamond dresser for involute and contour forms, automatically adjust wheel compensation.
  • Custom work holding fixtures upon request
